The System Design of a New Electronic Mixing Valve for an Instant Boiling Water Dispenser
Matthijs Hoogendoorn (TU Delft - Industrial Design Engineering)
Erik Tempelman – Mentor (TU Delft - Materials and Manufacturing)
Henk Crone – Coach (TU Delft - Materials and Manufacturing)
More Info
expand_more
Other than for strictly personal use, it is not permitted to download, forward or distribute the text or part of it, without the consent of the author(s) and/or copyright holder(s), unless the work is under an open content license such as Creative Commons.
Abstract
This thesis describes the development of a new electronic mixing valve for
Quooker B.V., manufacturer of instant boiling water dispensing systems. A
mixing valve is able to control the blending of different liquids to ensure a
predetermined outcome. By integrating electronics into a mixing valve and
turning it into a mechanic product the user will be able to better control
and monitor the temperature, flow rate and volume of dispensed water.
Furthermore, a new electronic mixing valve is a foundational piece for future
innovations. During the project an initial research has been carried out. Findings of this research have been used in the design of three concepts, which were built
and tested. The best concept has been further embodied. Through testing,
simulations and research a viable and feasible product has been created

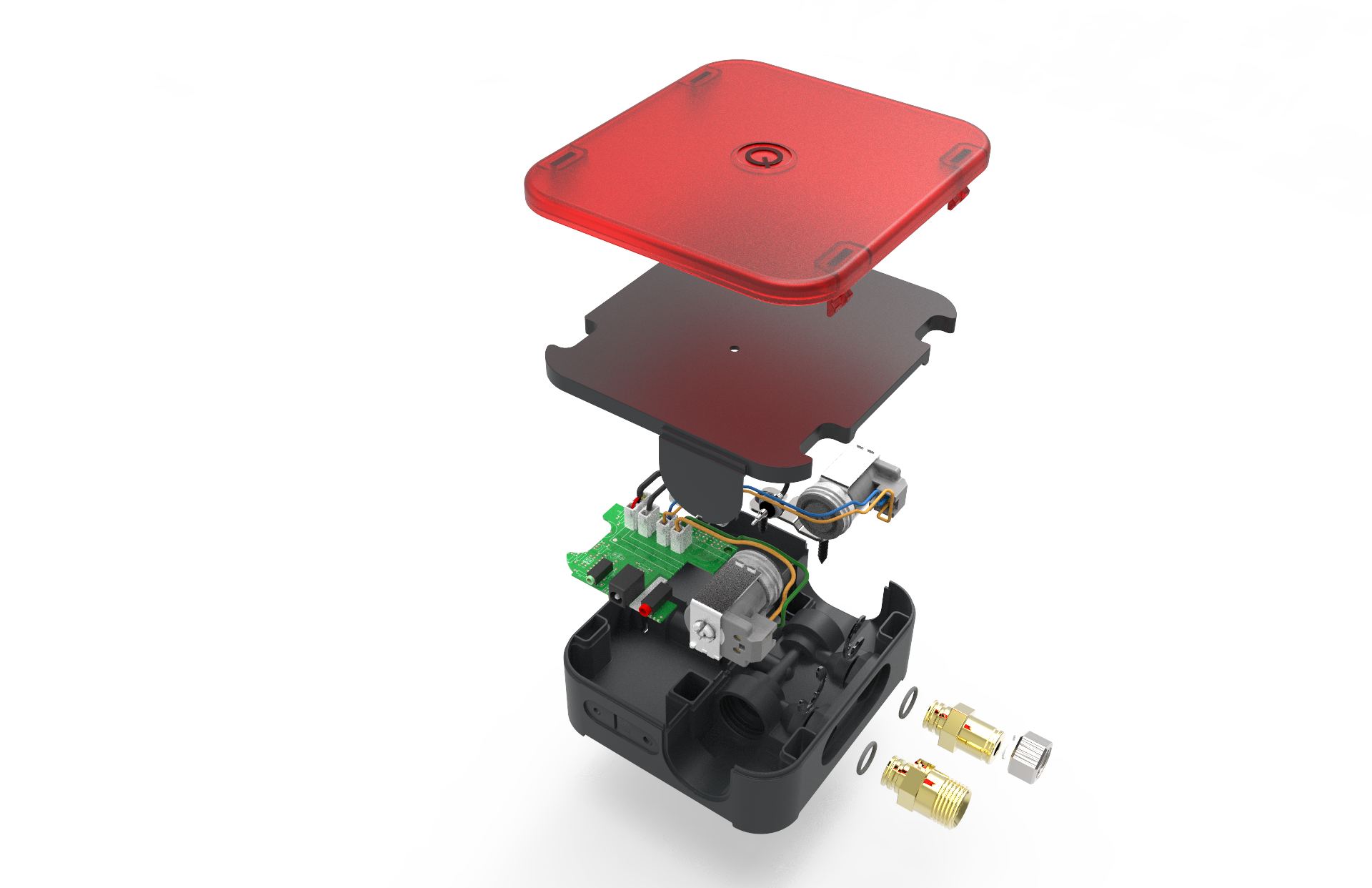

with the aid of Computer Aided Design (CAD). The final result of the thesis is
a simplified prototype and an assessment proposal for further development,
as well as a realistic electronic mixing valve concept for Quooker B.V.
